Silver Appearance Electric Vehicle Batteries 44.4V 50Ah 1P16S Battery Configuration

Name: Silver Appearance Electric Vehicle Batteries 444V 50Ah 1P16S Battery Configuration
Brand: Soundon
Price: 1 USD

Buy cheap Silver Appearance Electric Vehicle Batteries 44.4V 50Ah 1P16S Battery Configuration product

Brand Name : Soundon

Model Number : EV-019--44.4V/50Ah

Certification : CE,ROHS,MSDS

Place of Origin : China

MOQ : 10

Price : Negotiation

Supply Ability : 1000/day

Delivery Time : 25-30days

Packaging Details : carton box package

battery module : 44.4V50AH

Dimension : 355*155*108mm

Energy density : 215 Wh/kg

Max. Pulse Discharging Current : 3C

battery cell : SEPNi11100302P-50Ah

battery cell energy density : 260 Wh/kg

Application : e-trucks, fork lifts ,house storage power,off-grid solar energy

battery configuration : 1P16S

Contact Now

44.4V50Ah Battery Module with 260Wh/kg high energy density For Electric Vehicle Batteries

VDA Battery Module specification:

Item	Specification
Nominal Capacity	100Ah ,1 C discharging(25±2℃) 101.6Ah ,1/3C discharging(25±2℃)
Typical Capacity	102Ah ,1 C discharging(25±2℃)
Minimum Capacity	100Ah ,1C discharging(25±2℃)
Nominal Voltage	44.4V
Charge Ending voltage	max voltage 4.4V
Discharge Ending Voltage	0℃≤T(Temperature)≤55℃	to single cell min voltage 3.0V
	-20℃≤T(Temperature)≤0℃	to single cell min voltage 2.4V
Standard Charging Method	0.5C constant current charge to single cell max voltage 4.4V,then cut-off to current 0.05C with constant voltage charge
Max. Constant Charging Current	1C
Max. Pulse Charging Current	1.5C≤30S
Standard Discharging Current	25±2℃ 1/3C constant current discharge to single cell min voltage 3.0V
Max. Constant Discharging Current	1C
Max. Pulse Discharging Current	3C≤30S
Operating environment	Charging: 0℃~55℃, max.90%RH Discharging: -20℃~55℃, max.90%RH
Module Weight	10.3±0.3 kg
Energy Density	around215.0Wh/kg

Battery cell sepcificaiton :

Item	Specification
Nominal Capacity	50Ah
Nominal Voltage	3.7 V
Charge Ending Voltage	4.4 V
Impedance	≤1.5 mΩ
Cell Weight (Not include PCB)	740g

Superiority:

Using high energy density NCM materials up to 260wh/kg .

Battery cell is special design for electric vehicle which adopt the VDA standard to match any model battery pack ,and already mass production

Passed the international certificate :UN38.3,MSDS,CE

Battery package are comply with international export transpotation rules UN38.3 and dangerous package certificate.

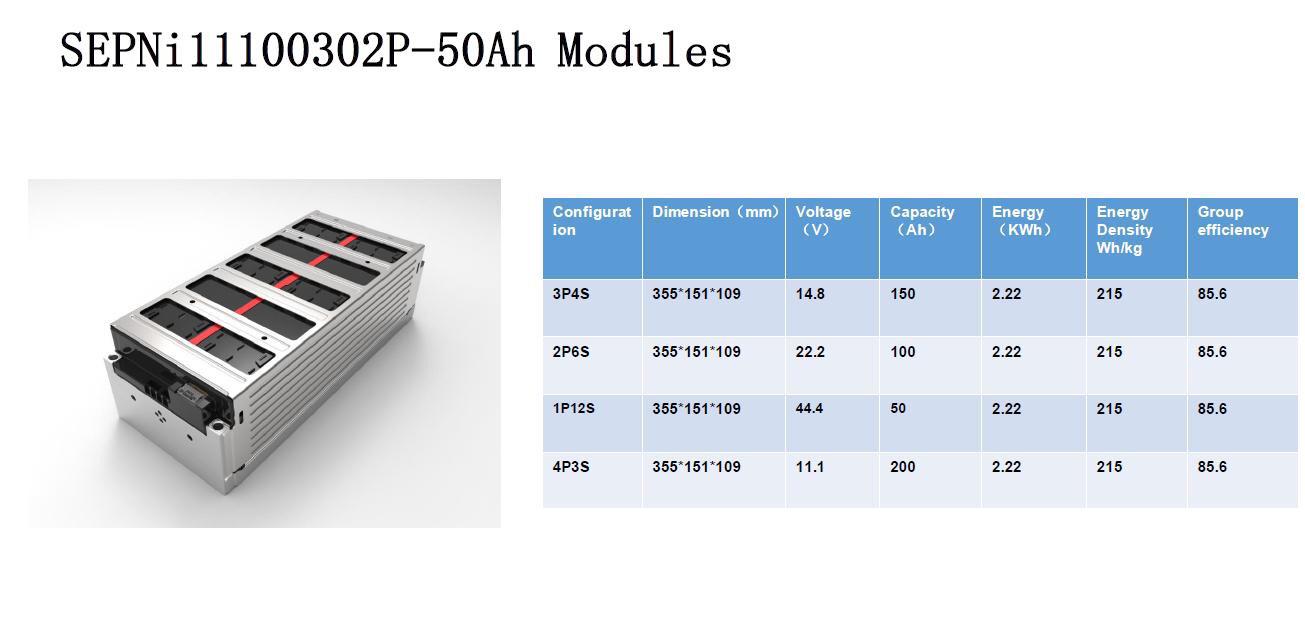

Battery Module List
