537.6V Lifepo4 220Ah Electric Bus Batteries For Pure Electric Bus
| voltage/Capacity | 537.6V/220Ah |
| Total power | 118.3Kwh |
| Configuration | 10P168S |
| Charge | Max continuous current | ≤1C |
| Discharge | Max Instantaneous Current | ≤2C |
| Continuous Current | ≤1C |
| Working Temp. Range | Discharge: -20℃~45℃ |
| Charge: 0℃~45℃ |
| Storage Temperature | -20～25℃ (3-6months, 50%SOC) |
| -20～45℃(1-3months, 50%SOC) |
| -20～60℃ (within 1 month, 50%SOC) |
| Relative Humidity | 5%~95% |
| Charge retention | ≥95% |
| Resistance | ≥20MΩ |
| Cooling Method | Air cooling |
Lifepo4 battery cell performance :
Longer cycle life :more than 3000times under 1C discharge and charge rate 100%DOD

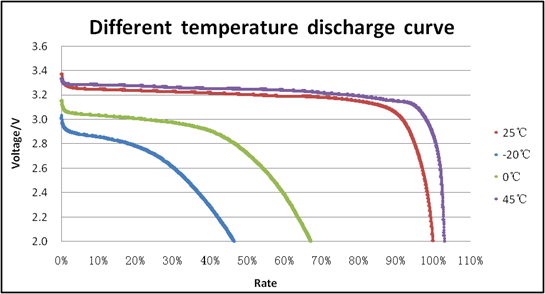

LifePO4 Different temperature discharge curve
Lifepo4 different rate discharge curve under 1C,2C,3C
Lifepo4 Feature :
1. Wide Cell capacity: 20~50AH and high energy density :130WH/KG for Electric vechicles ,electric bus ,electric truck ,Energy storage system
SEPFe80125256P-3.2V20Ah
SEPFe90161227P-3.2V25Ah
SEPFe11190316P-3.2V50Ah
SEPFe12212268P-3.2V50Ah
2. Long cycle life; 1C/1C 100%DOD,at 3000times, with 80%SOC
3. Good safety performance, high quality material, national standard tests passed.
4. Advanced technique and automatic production line, great consistency assured, extending lifespan of the battery pack;
5. Flexible design of prismatic case, offering customization service.
Flexible battery cells can configurate to small battery module such as 3P/4P/5P , meeting the requirements of different customers
SEPFe80125256-3.2V20Ah:
3P capacity :3.2V60AH Size :298.5*132.6*28mm
4P capacity:3.2V40AH Size:298.5*132.6*36mm
5P capacity :3.2V100Ah size:298.5*132.6*44mm
Applications:
Electric Propelling Applications: Engine Starting Battery ,Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,E-truck, E-sweeper, Floor cleaner, E-walker etc.Intellectual Robots
Power tools: electric drills, toys
Energy Storage:Solar-Wind Power System,City Grid (On/Off) ,Community and Family
Back-up System and UPS :Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment
Other Applications :Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
