Name: NCM Battery Cathode Materials For Automotive Battery Manufacturing Process
Brand: Soundon
Price: 1 USD

Brand Name : Soundon

Model Number : SD-SN3B

Certification : PONY ,CE MSDS

Place of Origin : China

MOQ : 500KGS

Price : Negotiation

Supply Ability : 5000 Ton / year

Delivery Time : 15-20days after payment

Packaging Details : Inner plastic package , then alumina plastic seal package ,outside with iron or carbon bucket package

Voltage : 3.6V

Average particle size (D50) : 10.3（7.0～12.0）µm

Specific surface area : 0.45(0.30～0.60) m2/g

Tap density : 2.35(≥2.10) g/cm3

Initial discharge capacity : 178.0(≥175.0) mAh/g

Capacity retention ration（RT） : 83.2(≥80，55℃) after 500cycles

Contact Now

Excellent cycle At High Temperature NCM Battery Cathode Material For E Tools , BEV Battery

specification

Item		Unit	SN3B(Power type) Typical value/ Control standards
Particle size distribution	D10	µm	6.6(≥5.0)
	D50	µm	10.3(7.0～12.0)
	D90	µm	20.5(≤30.0)
Specific surface area		m²/g	0.45(0.30～0.60)
pH		/	11.58(≤11.70)
Tap density		g/cm³	2.35(≥2.10)
Compact density		g/cm³	3.45(≥3.20)
Initial discharge capacity (vs.Li, 0.2C)		mAh/g	178.0(≥175.0)
Initial charge-discharge efficiency		%	86.1(≥85.0)
Capacity retention ration after 500 cycles		%	83.2(≥80,55℃)

Discription

1. Type: SN3B

2. Module: Good cyclelife type of Lithium Nickel-cobalt-manganese Oxide

3. Characteristics: High energy density, high capacity, longer cycle time at high temperature and lower cost etc.

Charge and discharge curve

NCM Battery Cathode Materials For Automotive Battery Manufacturing Process

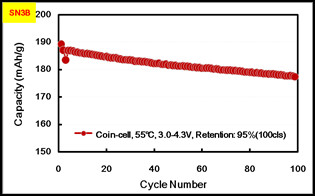

Cycle curve at 55 high temperature

NCM Battery Cathode Materials For Automotive Battery Manufacturing Process
