High Energy Density 87.5Ah NMC Home Storage Battery With UL and ARAI Certificate For Electric vehicle and Energy Storage

  • 1
  • 2

Brand Name : Soundon

Model Number : SEPNi8688190P-5P1S

Certification : CE,UN38.3,ROHS,MSDS,UL ,ARAI

Place of Origin : China

MOQ : 50

Price : Negotiable

Supply Ability : 1000 pcs/ week

Delivery Time : sample for a week ,mass production around

Packaging Details : carton box pacage

Nomial Voltage : 3.65V

Nomial Capacity : 87.5Ah

Typiacl Capacity : 88.75Ah

Energy Density : 196Wh/kg

Max constant discharge current : 1C

Max pluse charge current : 1.5C

Max pluse discharge current : 3C

Module Weight : 1.61kg

Contact Now


High Energy Density 87.5Ah NMC Home Storage Battery With UL and ARAI Certificate For Electric vehicle and Energy Storage

Basic Specification :


ContentParameter
Cell SEPNi8688190P-17.5Ah
Module inner configuration5P1S
Module dimension(H*W*T)242× 97× 45.3(mm)
Module rated capacity87.5Ah
Module nominal voltage.3.65V
Module weight(5P1S)≈1.57Kg


Charge and discharge Performance


Discharge current Voltage
 		3.00V
Standing charge method25±2℃ 0.5C constant current charge to 4.2V, then constant voltage
4.2V charge till charged current declines to ≤ 0.05C
Mac Constant charge current
1C (15℃～45℃)

Mac Plus charge current
1.5C (15℃～45℃) ≤30S
Standard Discharging
Current
25±2℃
0.5C constant current discharge to 3.0V
Max. Constant Discharging
Current
1C (-20℃～+45℃)
Max. Pulse Discharging
Current
3C (15℃～45℃) ≤30S
Operating environment


Charging:-10℃-55℃,max.90%RH

Discharging:-20℃-55℃,max.90%RH
Impedance
0.491~0.543mΩ



Battery Cell  basic performance


Voltage ,capacity3.65V17.5AH
Energy Density220wh/kg
Discharge Ending Voltage
0℃≤T(Temperature) ≤55℃
:3.0V

-30℃≤T(Temperature) ＜0℃
 :2.4V

Discharge current Voltage
 		3.00V
Standing charge method25±2℃ 0.5C constant current charge to 4.2V, then constant voltage
4.2V charge till charged current declines to ≤ 0.05C
Mac Constant charge current
1C (15℃～45℃)

Mac Plus charge current
3C (15℃～45℃) ≤30S
Standard Discharging
Current
25±2℃
0.5C constant current discharge to 3.0V
Max. Constant Discharging
Current
1C (-20℃～+45℃)
Max. Pulse Discharging
Current
3C (15℃～45℃) ≤30S
Operating environment
Charging:-10℃-55℃,max.90%RH
Discharging:-20℃-55℃,max.90%RH
Impedance
＜3.5 mΩ



Battery cell with UL certificate
High Energy Density 87.5Ah NMC Home Storage Battery With UL and ARAI Certificate For Electric vehicle and Energy Storage

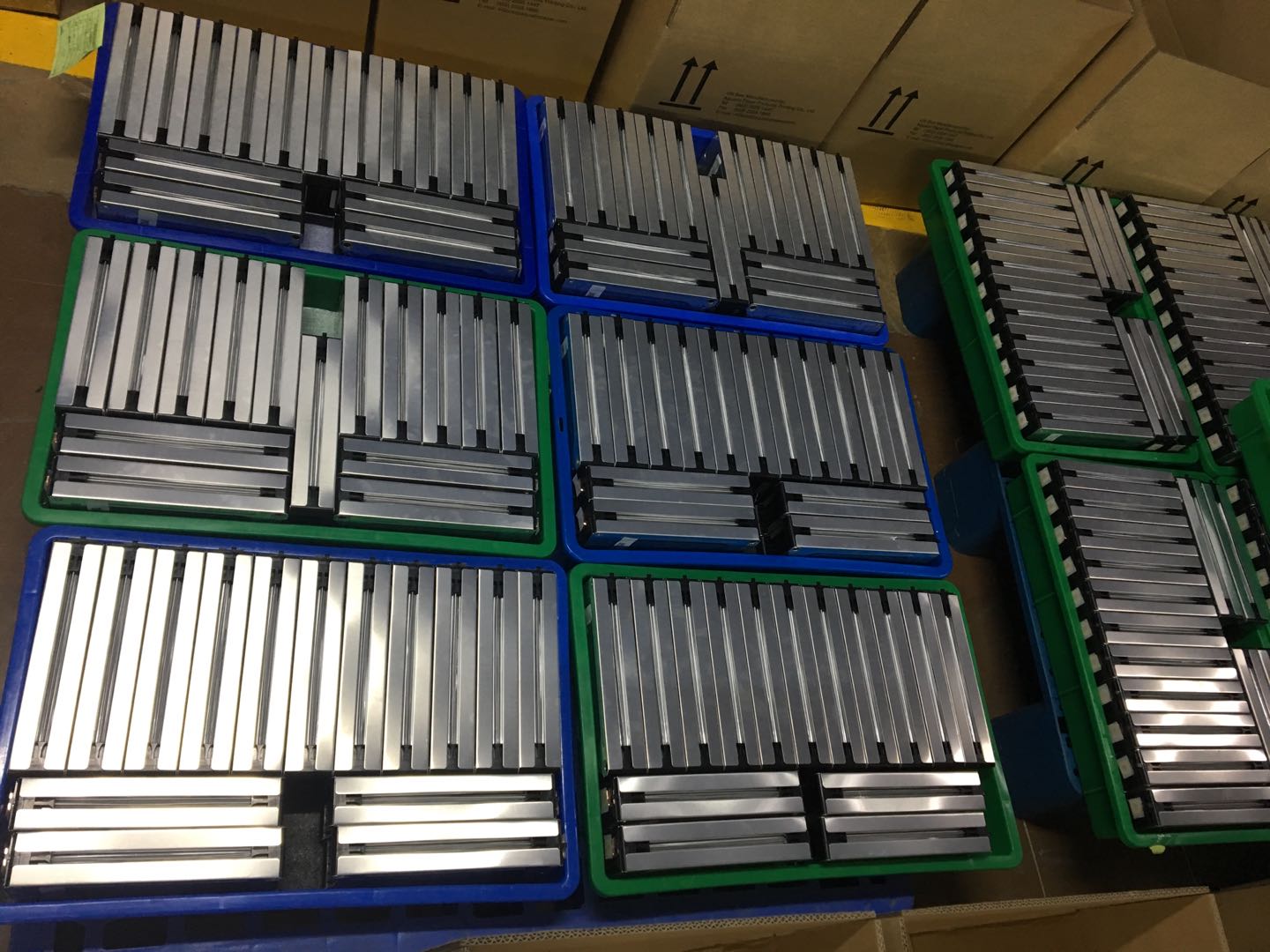

Mass Product
High Energy Density 87.5Ah NMC Home Storage Battery With UL and ARAI Certificate For Electric vehicle and Energy Storage
