Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply

Brand Name : Wincle

Model Number : star 229

Certification : MSDS, UN38.3, CE, CB, IEC 62619

Place of Origin : China

MOQ : 1

Delivery Time : 25-30 working days

Model NO. : SD-100/200

Unbalanced Load : 100%

Battery Type : LiFePO4

Cooling Method : Air Cooling

Noise : <65 dB 1m From The System

Specification : 1700*2300*1250 mm

Weight : 2200kg

Warranty : 10 Years

Nominal Capacity : 229kwh

Rated Power : 100kw

Nominal Voltage : 380 VAC \ Three-Phase Four-Wire

Max Apparent Power : 110 Kw

Contact Now

Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply

Product Spec
    parameter
AC parameters
Model SD-100 / 200
  1.
 Rated Capacity 200 kWh
  1.
 rated power 1 00 kW
  1.
 AC access method Three-phase four-wire (three-phase three-wire)
  1.
 isolation method /
  1.
 Reactive range Power factor -0.95 ~ +0.95 adjustable
Grid-connected operating parameters
  1.
 Rated grid voltage 380V (AC315V/AC290V)
  1.
 Allowable grid voltage ±15%
  1.
 Rated grid frequency 50Hz
  1.
 Allowable grid frequency 47.5Hz～51.5Hz
  1.
 Total Current Distortion Rate ≤5%
  1.
 power factor ≥0.98 (rated power)
  1.
 Charge and discharge conversion time ≤100ms
  1.
 and off-grid switching time ≤50ms
Off-grid operating parameters
  1.
 Rated output voltage AC380V/(AC315V/AC290V)
  1.
 Output voltage deviation AC380V(AC315V/AC290V)±5%
  1.
 Output voltage unbalance ≤5%
  1.
 Output voltage distortion ≤3% (linear load)
  1.
 Rated output frequency 49.5Hz～51.5Hz
System parameters
  1.
 system efficiency Power efficiency ≥ 95%, energy efficiency ≥ 85%
  1.
 noise <65 dB (at 1 m from the system)
  1.
 degree of protection IP54
  1.
 Allowable operating ambient temperature -20℃～+55℃
  1.
 cooling method Forced air cooling
  1.
 allowable relative humidity 0～95% non-condensing
  1.
 size W1500*D1300*2300
surveillance system
  1.
 Communication Interface ethernet
  1.
 communication protocol IEC60870-5-104, Modbus tcp, IEC61850-9-2+goose

Features

  • Integrated integration, high integration, easy design, construction, commissioning and operation and maintenance;
  • Modular construction, plug and play, short installation period, convenient operation and maintenance;
  • Intelligent monitoring, real-time online, intelligent monitoring and early warning, the system is safe and reliable;
  • Standardized expansion, strong scalability, can be combined with standard modules to expand products with different capacities according to needs;

Application Cases


This series is a cabinet power station energy storage system mainly for the following application fields:

  • Factories, enterprises, business centers, etc. with fluctuating loads
  • Island microgrid;
  • Power stations with access to new energy or distributed energy;
  • Outdoor temporary large load center;
  • Emergency mobile power station.

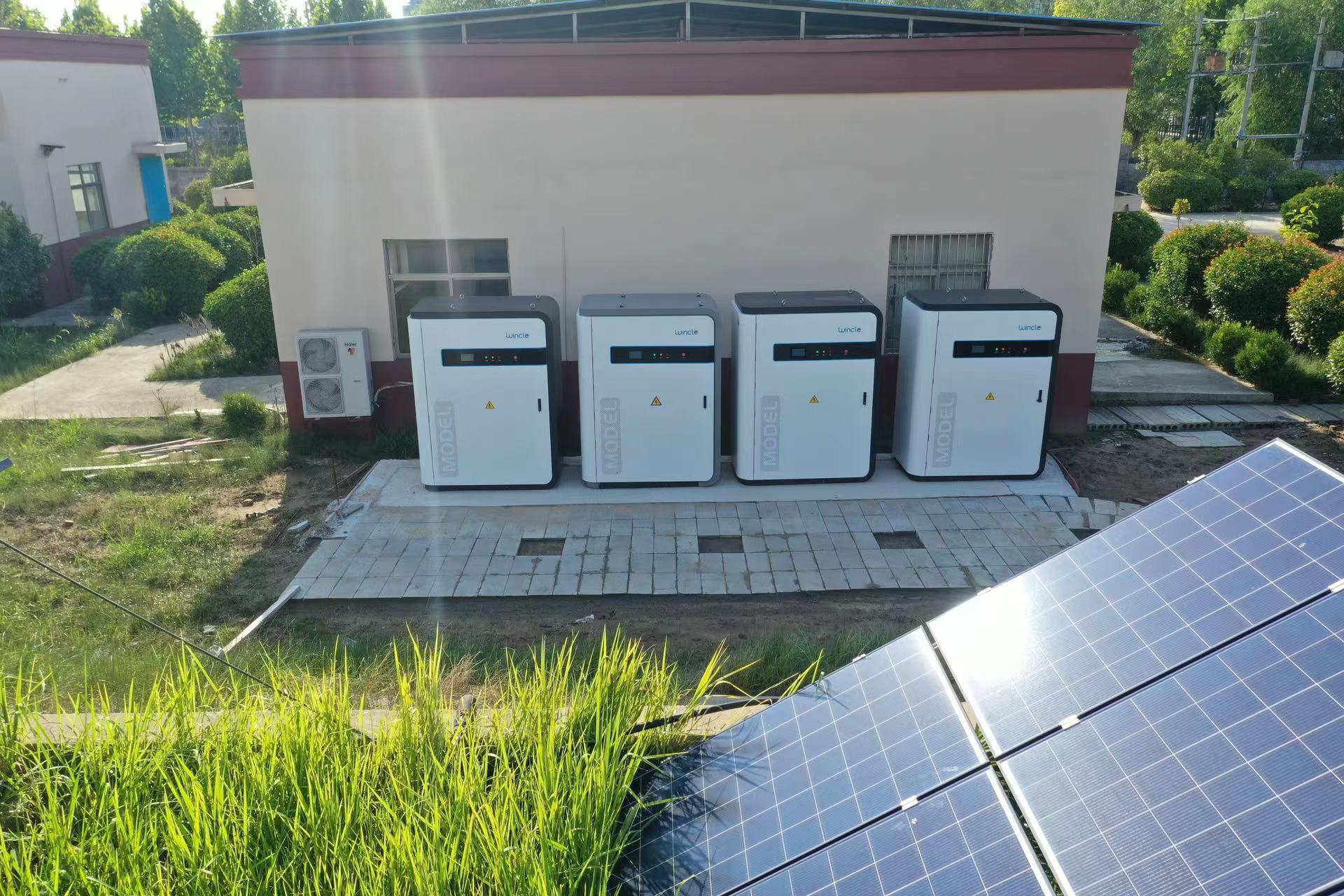

Back up power supply for Waterworks plant

Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply

Peak shaving and valley Filling  For Copper Plant

Outdoor ESS cabinet Air cooled 229kwh LFP large capacaity for park energy storage and back up power supply



Company profile


     Soundon New Energy is invested by Sound Group and Hunan Chasing Financial. It's an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery. Our products are widely used in public lives, military affairs, aviation and  transportation, energy, communication and information etc. Soundon has lithium-ion cathode material department, lithium-ion battery department and electric vehicle department, each department is in independent operation.
Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
